Reset

If you want to get back to the default set of configuration files, delete or rename the broot directory in your standard configuration place (e.g. ~/.config/broot). On next launch, broot will recreate all the necessary files.

Hjson or TOML

Two formats are allowed: TOML and Hjson.

This documentation will often show you the same setting in both formats, with two tabs, like this:

// setting to use if your config file is in .hjson

# setting to use if your config file is in .toml

Opening the config files

The main configuration file is called either conf.toml or conf.hjson.

This default file's location follows the XDG convention, which depends on your system settings. This location in your case can be found on the help screen (use ?).

The default configuration file contains several example sections that you may uncomment and modify for your goals.

It typically imports other files in the same directory.

Imports

A configuration file can import some other files. This eases management, as you may for example define your skin in a file, or the list of verbs in another one.

An import can have as condition whether the terminal is in dark or light mode, so that broot can take the most suitable skin on launch.

All imports are defined in an imports array.

For example:

imports: [

    verbs.toml

    {
        luma: light
        file: white-skin.hjson
    }

    {
        luma: [
            dark
            unknown
        ]
        file: dark-blue-skin.hjson
    }

]

This example defines 3 imports.

The first one has the simplest form: just a (relative or absolute) path. This import isn't conditional.

The second import is done only if the terminal's luma is determined to be light.

And the third one is done when the terminal's luma is either dark or couldn't be determined.

Starting from version 1.14, the default configuration is released in several files.

Default flags

Broot accepts a few flags at launch (the complete list is available with broot --help). The default_flags entry lets you specify them in configuration, with the same syntax.

For example, if you want to see hidden files (the ones whose name starts with a dot) and the status of files related to git, you launch broot with

br -gh

If you almost always want those flags, you may define them as default in the configuration file file, with the default_flags setting.

default_flags: -gh

default_flags = "-gh"

Those flags can still be overridden at launch with the negating ones. For example, with the above default_flags, if you don't want to see hidden files on a specific launch, do

br -H

Special Paths

You may map special paths to specific behaviors. You may for example

• have some link to a directory to always automatically be handled as a normal directory
• exclude some path because it's on a slow device or non relevant
• have a file be visible even while it's normally ignored

A special paths entry is defined by 3 parameters: show, list, and sum. Each of them can be default, always, or never.

Example configuration:

special_paths: {
    "/media" : {
        list: "never"
        sum: "never"
    }
    "~/.config": { "show": "always" }
    "trav": {
        show: always
        list: "always",
        sum: "never"
    }
    "~/useless": { "show": "never" }
    "~/my-link-I-want-to-explore": { "list": "always" }
}

[special-paths]
"/media" = { list = "never", sum = "never" }
"~/.config" = { show = "always" }
"trav" = { show = "always", list = "always", sum = "never" }
"~/useless" = { show = "never" }
"~/my-link-I-want-to-explore" = { list = "always" }

Be careful that those paths (globs, in fact) are checked a lot when broot builds trees and that defining a lot of paths will impact the overall speed. When the goal is to have a gitignored file visible, it's more convenient and efficient to use a .ignore file.

Search Modes

It's possible to redefine the mode mappings, for example if you usually prefer to do exact searches:

"search-modes": {
    <empty>: regex name
    /: fuzzy path
    z/: regex path
}

[search-modes]
"<empty>" = "regex name"
"/" = "fuzzy path"
"z/" = "regex path"

The search mode must be made of two parts :

• the search kind: Either exact, fuzzy, regex, or tokens
• the search object: Either name, path, or content

Selection Mark

When the background colors aren't rendered in your terminal, aren't visible enough, or just aren't clear enough for you, you may have the selected lines marked with triangles with

show_selection_mark: true

show_selection_mark = true

Columns order

You may change the order of file attributes in file lists:

• mark: a small triangle flagging the selected line
• git : Git file info
• branch : shows the depth and parent in the tree
• permission : mode, user, group
• date : last modification date
• size : ISO size (and size bar when sorting)
• count : number of files in directories
• name : file name

For example, if you prefer to have the branches left of the tree (as was the default in broot prior 0.18.1) you can use

cols_order: [
    mark
    git
    branch
    permission
    date
    size
    count
    name
]

cols_order = [
    "mark",
    "git",
    "branch",
    "permission",
    "date",
    "size",
    "count",
    "name",
]

The name should be kept at end as it's the only one with a variable size.

Colors by file extension

broot doesn't support LS_COLORS which isn't available on all systems and is limited to 16 system dependent colors.

But you can still give a color to files by extension:

ext_colors: {
    png: "rgb(255, 128, 75)"
    rs: "yellow"
    toml: "ansi(105)"
}

[ext-colors]
png = "rgb(255, 128, 75)"
rs = "yellow"
toml = "ansi(105)"

(see here for precision about the color syntax in broot)

Syntax Theme

You can choose any of the following syntaxic coloring themes for previewed files:

• GitHub
• SolarizedDark
• SolarizedLight
• EightiesDark
• MochaDark
• OceanDark
• OceanLight

syntax_theme: OceanLight

syntax_theme = "OceanLight"

Those themes come from syntect and are bundled in broot.

Terminal title

If you set the terminal_title parameter, broot will change the title of the terminal when the current tree root changes.

The pattern allows using the same arguments than verb execution patterns, eg {file} or {git-name}.

terminal_title: "{file} 🐄"

terminal_title = "{file} 🐄"

Preview

Kitty Graphics

Whenever possible, previewed images will be displayed in high resolution using Kitty's graphics protocol.

Two transmission media are possible:

• chunks: slow but works remotely
• temp_file: faster but doesn't work when broot is remotely executed, default

kitty_graphics_transmission: chunks
#kitty_graphics_transmission: temp_file

kitty_graphics_transmission = "chunks"
#kitty_graphics_transmission = "temp_file"

Transformers

It's possible to define transformers to apply to some files before preview.

This makes it possible for example to render a specific kind of files as images, or to beautify some text ones.

Below are examples that you may adapt to your needs and preferred tools. They must be included in a preview_transformers array, as shown in the default conf.hjson.

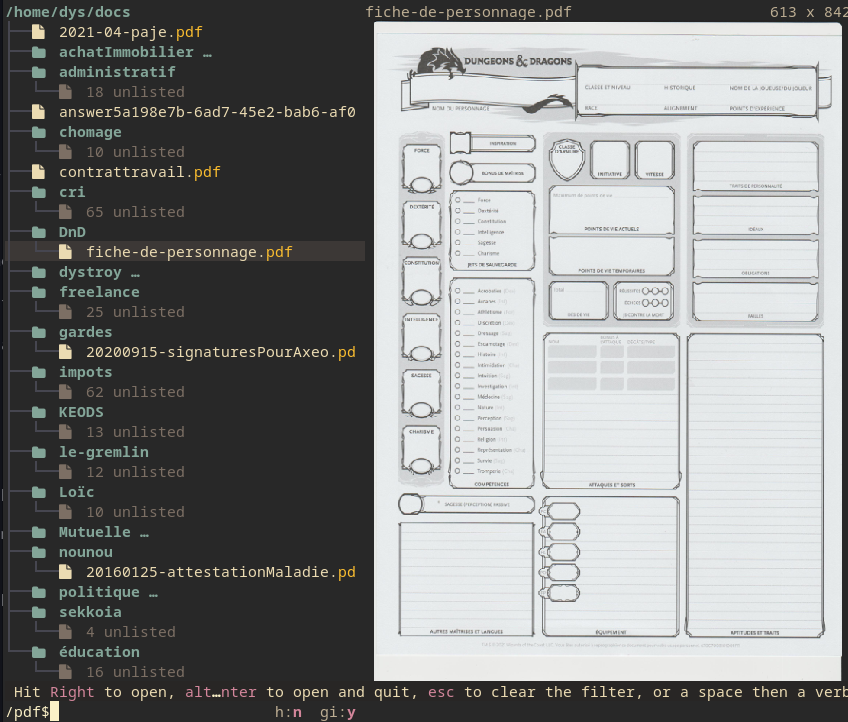

Render PDF using mutool:

# Use mutool to render any PDF file as an image
# In this example we use placeholders for the input and output files
{
    input_extensions: [ "pdf" ] // case doesn't matter
    output_extension: png
    mode: image
    command: [ "mutool", "draw", "-w", "1000", "-o", "{output-path}", "{input-path}" ]
}

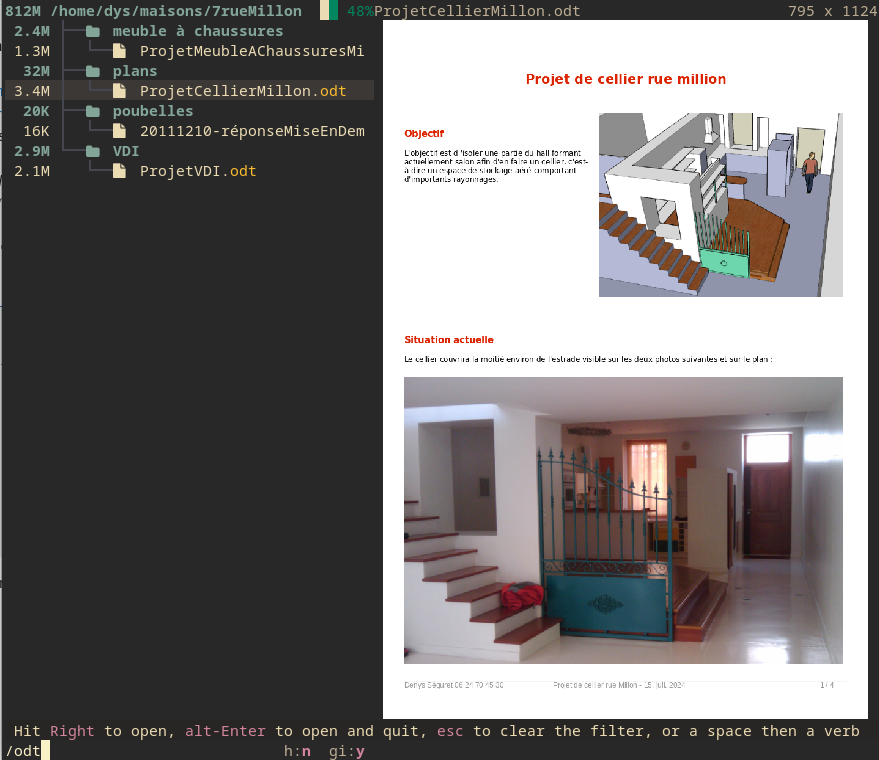

Render Office files using libreoffice:

{
    input_extensions: [ "xls", "xlsx", "doc", "docx", "ppt", "pptx", "ods", "odt", "odp" ]
    output_extension: png
    mode: image
    command: [
        "libreoffice", "--headless",
        "--convert-to", "png",
        "--outdir", "{output-dir}",
        "{input-path}"
    ]
}

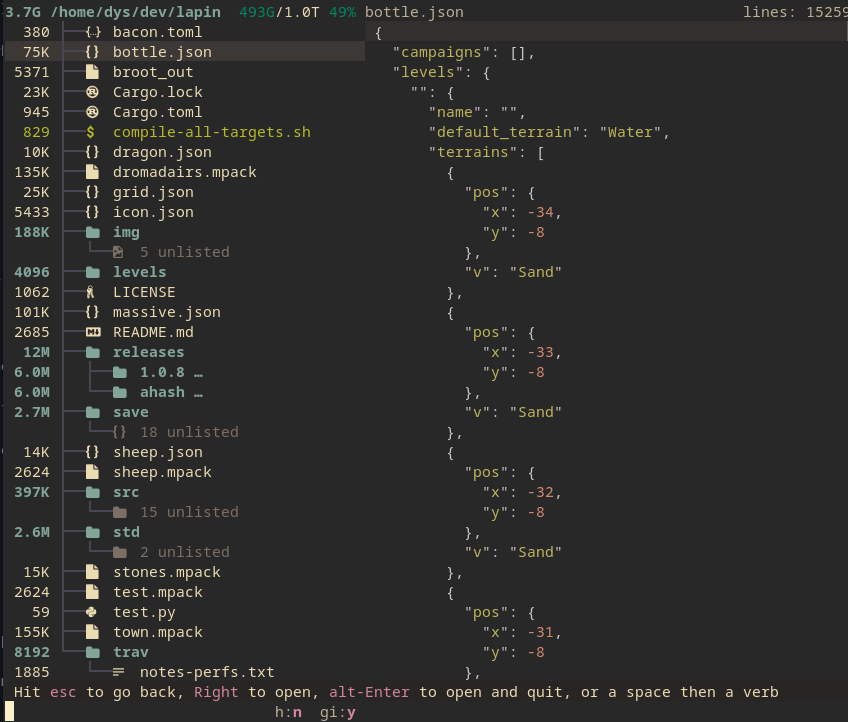

Beautify JSON using jq

# Use jq to beautify JSON
# In this example, the command refers to neither the input nor the output,
# so broot pipes them to the stdin and stdout of the jq process
{
    input_extensions: [ "json" ]
    output_extension: json
    mode: text
    command: [ "jq" ]
}

Match surroundings

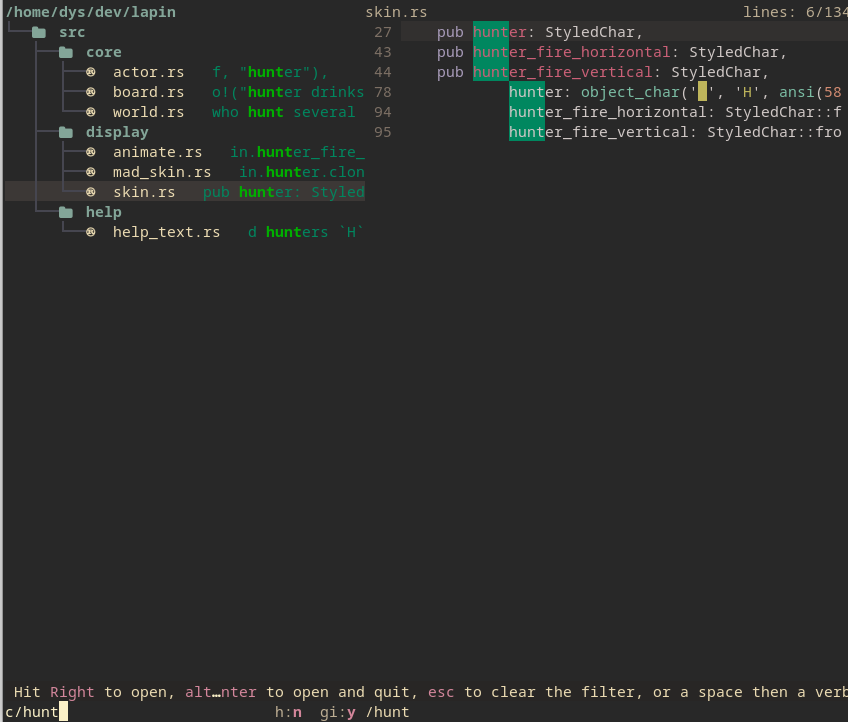

You may limit the filtered view to just the matching lines:

But if you want to have more than just the matching lines displayed in preview, you may set those parameters to

lines_before_match_in_preview: 1
lines_after_match_in_preview: 1

lines_before_match_in_preview = 1
lines_after_match_in_preview = 1

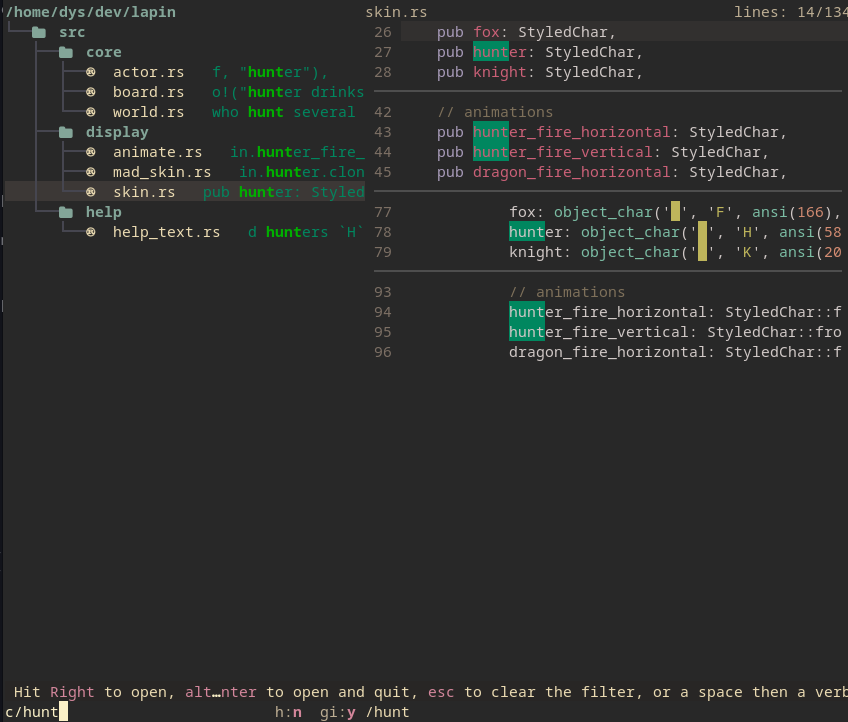

And you'll get

Miscellaneous

Keyboard enhancements

By default, ANSI terminals make a lot of keyboard combinations impossible, for example spacen, or altab, or shiftspace, etc. Some terminals implement Kitty's keyboard protocol and basically make it possible to bind verbs to such combinations.

Broot tests whether the terminal supports those enhancements, and if it's the case, tries to enable them.

A small downside is that broot will react on key release instead of key press (so that you may press other keys before you release the first one), which may feel less instant. If the Kitty protocol isn't supported by your terminal, broot will react on key press. Another problem is that it may push you towards key combinations that you wouldn't be able to reuse when switching terminal. And finally, some terminals have buggy implementations (at time of writing).

To enable those keyboard enhancements change this setting to true

enable_kitty_keyboard: true

enable_kitty_keyboard = true

Max staged count

This is the maximal number of files added by a :stage_all_files command

max_staged_count: 1234

max_staged_count = 1234

Mouse Capture

Broot usually captures the mouse so that you can click or double click on items. If you want to disable this capture, you may add this:

capture_mouse: false

capture_mouse = false

File Sum Threads Count

This is the number of threads used for directory size computation. Most users should not change this. In my measurements a number of 4 to 6 looks optimal.

file_sum_threads_count: 10,

file_sum_threads_count = 10

Quit on last cancel

You can usually cancel the last state change on escape. If you want the escape key to quit broot when there's nothing to cancel (for example when you just opened broot), you can set quit_on_last_cancel to true:

quit_on_last_cancel: true

quit_on_last_cancel = true

Update broot's work dir

By default, the work dir of the broot process is synchronized with the root of the current panel. If you prefer to keep the work dir unchanged, disable this feature with

update_work_dir: false

update_work_dir = false

Pattern match display

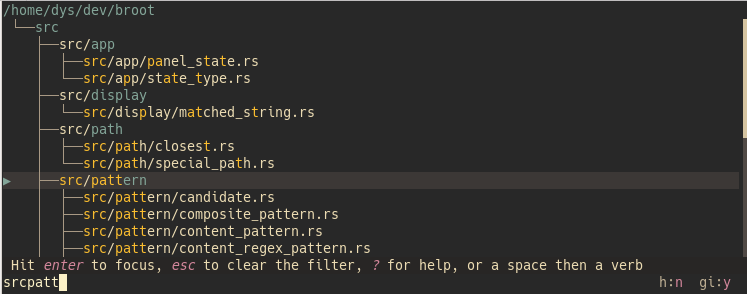

When your search pattern is applied to a path, the path is shown on each line so that you see why the line matches:

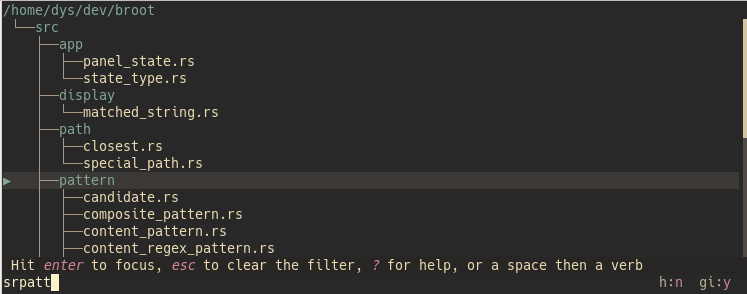

If you don't really need to see matching characters, you may get a cleaner display with just file names with this option:

show_matching_characters_on_path_searches: false

show_matching_characters_on_path_searches = false

which gives this:
